DASH Mining Guide with Antminer D3

Dash is a cryptocurrency that can be operated online. It is a payment platform built by millions of users in the world. Users can use Dash to make a secure online instant payment. The core of Dash is made up of a unique P2P network with incentive system. Miners are rewarded for maintaining block chain security. Master node holders are rewarded for verifying transactions, storing data and providing multiple services. Master node represents the new level of network. They form a highly secure cluster – an arbitration chain that provides a wide range of decentralized services such as instant transactions, anonymity, decentralized management, etc. While it also preventing low-cost cyber attacks. Thanks to Dash's reward mechanism, its network master node has grown to 4,100 since its release in 2014, which means that Dash P2P network has become one of the largest networks in the world. More nodes mean higher security, and Dash offers 24/7 cryptocurrency service to more users globally.

Now we can use the following miners to mine DASH, including Bitmain Antminer D3, Innosilicon A5,A5+, etc. For more details of miner hashrate, power consumption, Break-even point and so on, please visit Poolin website, https://www.poolin.me/.

*Screenshot taken on Jan. 22th, 2021

Here we will take Bitmain Antminer D3 as an example to introduce how to set up the miner and start to mine DASH.

What You Need to Know before Using Miners:

1. PSU output power is recommended to be 20% higher than the power consumption of miner;

2. The router or network switch you are using to get connected with miners shall be ones without POE;

3. Miners can only be connected to router or network switch with wired connection;

4. Recommended operation temperature: 10-35 °C;

5. Recommended operation humidity: <65%;

6. Measures shall be taken to protect miners from dust, cax or so, otherwise hashrate board may be in corrosion and heat may fail to be dissipated;

7. Google or FireFox browsers are recommended to signin miner backend.

PREPARATION

Before setting up Bitmain Antminer S9, you need to make sure whether everything is ok and ready.

Tools needed: PSU, PSU power cable, miner, network cable, a personal computer for operation

A: Check the Miner

1. Package inspection. After receiving a new miner, please make a package inspection first to check whether the package or the miner inside is damaged. If yes, please take photos and contact customer service of miner producer;

2. Miner inspection. Please take miner out from package and then check whether there's deformation or damage in miner, fan, cable, fan cable etc. If yes, please take photos and contact customer service of miner producer;

3. Heat sink inspection. Inspect from both the front and back fans to check whether heat sink is disconnected. If yes, please take photos and contact customer service of miner producer;

Note: as computing boards are put in card slot chassis, you may hear some sounds by shaking the miner, which is a normal phenomenon. And don't worry about it.

B: a tool to locate miner IP, IP reporter

https://service.bitmain.com.cn/support/download?product=IP-reporter

C: miner tool https://service.bitmain.com.cn/support/download?product=Antminer%20Toolkit

D: pool website, visit https://www.poolin.me/and register an account

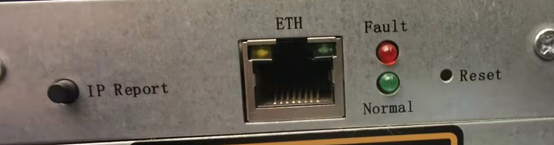

MINER BUTTON INTRODUCTION

MINER CABLE CONNECTION

1. Cable connection of hash board: Antminer D3 has three hash boards and each board has 3 PCIE intefaces, and each shall be connected with a 12V PSU cable, in total 9 pieces of 12V PSU cable.

Note: there's no difference in using which cable to connect with which interface. Just keep in mind to plug it in with right direction, namely the direction of buckle. If errorly operated, hash board may encounter short circuit and damage. After plotted those cables, you need to double check if the cable is loose or not fully inserted.

2. Cable connection of control board: there's one PCIe interface in control board and you just need to insert one 12V PSU cable.

Note: there's no difference in using which cable to connect with which interface. Just keep in mind to plug it in with right direction, namely the direction of buckle. If errorly operated, hash board may encounter short circuit and damage. After pluging those cables, you need to double check if the cable is loose or not fully inserted.

3. Network connection.

4. Fan connection. Check whether the plug of fan cable has been fully or tightly connected. Each fan is connected to control board with one plug.

LOCATE MINER IP

After the miner is fully equipped and set up, the first thing you need to do is locate miner IP.

Method One: Get IP through IP Reporter software

1) Download IP Reporter or other similar softwares from miner producer's website;

2) Run the software and click "start";

3) Press IP Report button for about 1 second;

4) The software will show the IP address of the miner you are operating.

Method Two: get IP address from router

1) Sign in router management page (usually it's an IP address that you can find in router instruction or label) and then you can see equipments that are connected to this router.

2) Figure out the miner you are operating according to its name or the time it's connected to router and then you will know the IP address of the miner.

MINER CONFIGURATION

After getting miner IP, you can start to configure the miner. Use a computer that is connected to the same router as the miner, and type the IP address of the miner in the computer browser address bar and press "enter" to continue.

1) There will be a pop-up page that requires you to enter username and password of the miner.

Default username and password are both root.

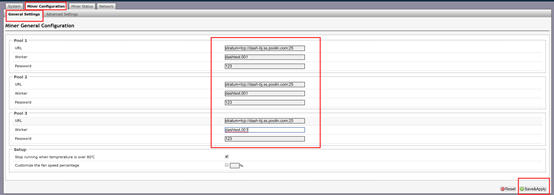

2) After signing in, click Miner Configuration and then General Settings and then enter the following three urls to URL respectively.

URL 1：stratum+tcp://dash.ss.poolin.me:443

URL 2：stratum+tcp://dash.ss.poolin.me:1883

URL 3：stratum+tcp://dash.ss.poolin.me:700

The miner will connect to pool 1 by default and then pool 2/pool 3 if it fails to connect to pool 1.

Worker: worker is a combination of the sub-account you've registered in Poolin.me, a dot and a miner ID that is used to name the worker. (You need to enter sub-account here, but not the wallet address you use to collect payment. You shall log into Poolin.me to set wallet address so that you can get your mining profit daily.)

Password: any password is ok

3) Click Save&Apply to start the miner.

4) The miner will start to work after a few seconds. You can go to Miner Status page to check details and performance.

 <1> Confirmation of the mining status of miner background: after miner is connected to mining pool, you could view hashrate and other data on Miner Status page.

<2>Confirmation of the mining status on Poolin dashborad: You can log in to your DASH sub-account at Poolin.me. When your miner is connected to the mining pool, you can see real-time hashrate, active miners and other data.

5) Login to Poolin.me and set payment address. (Poolin Wallet is recommended)
